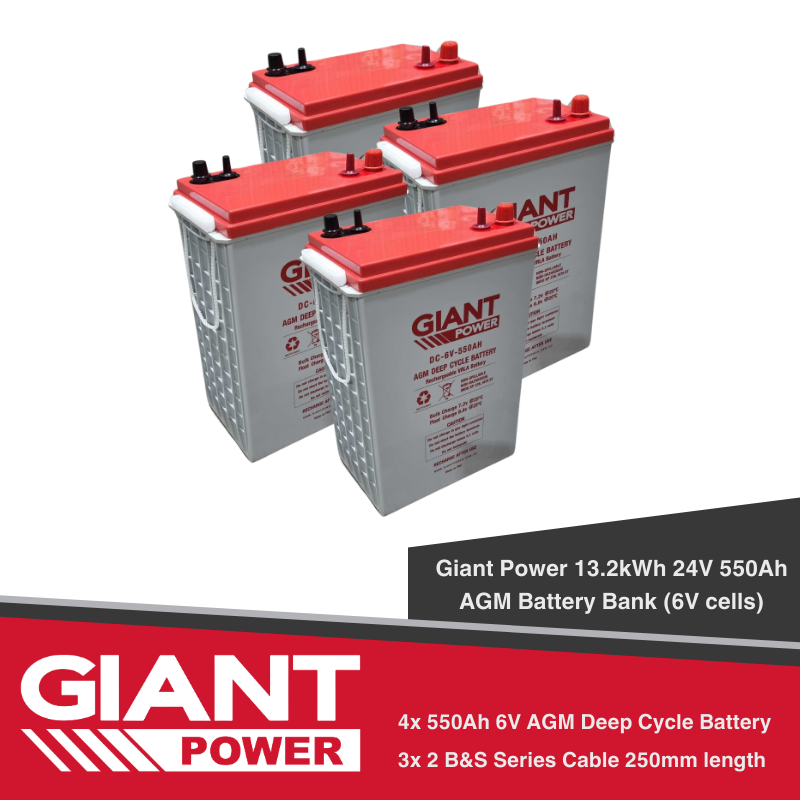

13.2kWh 24V 550AH AGM Battery Bank (6V cells)

Giant Power 6V 550AH AGM Deep Cycle Battery
Cells Per Unit	3
Voltage Per Unit	6
Nominal Capacity	550Ah@C100 to 1.75V per cell @25ºC
Dimension	Length: 295 ±2mm Width: 178 ±2mm Total Height (with Terminal): 425 ±2mm
Approx Weight	Approx 57.5 Kg (Tolerance ± 1.5%)
Max Discharge Current	4000A (5 Sec)
Internal Resistance	Approx 1.1mΩ
Operating Temp.Range	Discharge : -20 ~ 60^oC Charge : 0 ~ 50^oC Storage : -20 ~ 60^oC
Nominal Operating Temp. Range	25°C ± 5°C
Float Charging Voltage	6.8 VDC/unit Average at 25oC
Max Charging Current Limit	60 A
Equalization and Cycle Service	7.3 (7.4 for equalization) VDC/unit Average at 25oC
Self Discharge	Giant Power batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Terminal	Terminal F14/F22
Container Material	A.B.S UL94-HB, UL94-V0 Optional

Giant Power 6V 550AH AGM Deep Cycle Battery
Cells Per Unit	3
Voltage Per Unit	6
Nominal Capacity	550Ah@C100 to 1.75V per cell @25ºC
Dimension	Length: 295 ±2mm Width: 178 ±2mm Total Height (with Terminal): 425 ±2mm
Approx Weight	Approx 57.5 Kg (Tolerance ± 1.5%)
Max Discharge Current	4000A (5 Sec)
Internal Resistance	Approx 1.1mΩ
Operating Temp.Range	Discharge : -20 ~ 60^oC Charge : 0 ~ 50^oC Storage : -20 ~ 60^oC
Nominal Operating Temp. Range	25°C ± 5°C
Float Charging Voltage	6.8 VDC/unit Average at 25oC
Max Charging Current Limit	60 A
Equalization and Cycle Service	7.3 (7.4 for equalization) VDC/unit Average at 25oC
Self Discharge	Giant Power batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Terminal	Terminal F14/F22
Container Material	A.B.S UL94-HB, UL94-V0 Optional

Giant Power 6V 550AH AGM Deep Cycle Battery

Cells Per Unit

Voltage Per Unit

Nominal Capacity

550Ah@C100 to 1.75V per cell @25ºC

Dimension

Length: 295 ±2mm
Width: 178 ±2mm
Total Height (with Terminal): 425 ±2mm

Approx Weight

Approx 57.5 Kg (Tolerance ± 1.5%)

Max Discharge Current

4000A (5 Sec)

Internal Resistance

Approx 1.1mΩ

Operating Temp.Range

Discharge : -20 ~ 60^oC
Charge : 0 ~ 50^oC
Storage : -20 ~ 60^oC

Nominal Operating Temp. Range

25°C ± 5°C

Float Charging Voltage

6.8 VDC/unit Average at 25oC

Max Charging Current Limit

60 A

Equalization and Cycle Service

7.3 (7.4 for equalization) VDC/unit Average at 25oC

Self Discharge

Giant Power batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.

Terminal

Terminal F14/F22

Container Material

A.B.S UL94-HB, UL94-V0 Optional

We Also Recommend

$54.00

150A Solar Watt Meter (includes bonus 2x anderson

$54.00

150A Battery Watt Meter

Others Also Bought

Giant Power 2 x 140AH 12V AGM Deep Cycle Battery with Cables

Now $618.00

On Sale

56% OFF

RRP $1,398.00

Giant Power 2 x 140AH 12V AGM Deep Cycle Battery w

Giant Power 550AH 6V AGM Deep Cycle Battery

Now $549.00

On Sale

27% OFF

RRP $749.00

Giant Power 550AH 6V AGM Deep Cycle Battery

Giant Power 15.8kWh 48V 330AH AGM Battery Bank (12V cells)

Now $2,516.00

On Sale

21% OFF

RRP $3,196.00

Giant Power 15.8kWh 48V 330AH AGM Battery Bank (12

Giant Power 13.2kWh 12V 1100AH AGM Battery Bank (6V cells)

Now $2,516.00

On Sale

16% OFF

RRP $2,996.00

Giant Power 13.2kWh 12V 1100AH AGM Battery Bank (6

Giant Power 26.4kWh 24V 1100AH AGM Battery Bank (6V cells)

Now $5,032.00

On Sale

14% OFF

RRP $5,832.00

Giant Power 26.4kWh 24V 1100AH AGM Battery Bank (6

Giant Power 26.4kWh 48V 550AH AGM Battery Bank (6V cells)

Now $5,032.00

On Sale

Giant Power 26.4kWh 48V 550AH AGM Battery Bank (6V

More From This Category

Now $2,516.00

On Sale

16% OFF

RRP $2,996.00

Giant Power 13.2kWh 12V 1100AH AGM Battery Bank (6

Giant Power 79.2kWh 48V 1650AH AGM Battery Bank (6V cells)

Now $15,096.00

On Sale

Giant Power 79.2kWh 48V 1650AH AGM Battery Bank (6

Now $5,032.00

On Sale

Giant Power 26.4kWh 48V 550AH AGM Battery Bank (6V

23.7kWh 24V 990AH Giant Power AGM Battery Bank (12V cells)

Now $3,894.00

On Sale

19% OFF

RRP $4,794.00

23.7kWh 24V 990AH Giant Power AGM Battery Bank (12

Giant Power 15.8kWh 24V 660AH AGM Battery Bank (12V cells)

Now $2,596.00

On Sale

19% OFF

RRP $3,196.00

Giant Power 15.8kWh 24V 660AH AGM Battery Bank (12

Giant Power 52.8kWh 48V 1100AH AGM Battery Bank (6V cells)

Now $10,064.00

On Sale

16% OFF

RRP $11,984.00

Giant Power 52.8kWh 48V 1100AH AGM Battery Bank (6

Our
Reviews

We value your opinion.

Leave a review

Great battery!!

I’ve been running with these batteries in my small off grid shed home for about a year now! Had absolutely no issues with them (including no off gassing). With daily usage looking very reliable. I’ll be getting another set for the new house for sure! Delivery to just outside Canberra was also no issue. — Clint

Aussie Batteries

This is my 2nd set of Giant power batteries, 1st set lasted just shy of 6trs , Great product good price Great customer service, and prompt delivery , I highly recommend , Very impressed around THANKS AGAIN GREAT WORK — Dig Corrigan

Happy

The batteries are performing well. We're in lockwood, vic, and have had weeks of so, so weather and they are holding charge with minimal sunlight. They arrived promptly and we'll packed. Can't fault you guys or the batteries. Cheers — Keith A

A rare review

I purchased 4 Giant Power 550Ah batteries a year ago from Aussie Batteries and Solar. Their staff are friendly and very helpful, a pleasure to do business with... and the price was pretty good. A year down the track and the batteries are doing their job very well. I wouldn't normally give a review as it's becoming harder to find decent companies, In this case, I have no reservations in recommending Aussie Batteries. — Tony

Highly recommended

Excellent battery set up for off grid living. — Kurt

Great service.

Pleasure to do business with Aussie Batteries. Batteries arrived on time and well packaged. Thanks — ROGER H

SKU	DCP-24V4-550AH-6V
Brand	Giant Power
Shipping Weight	234.0000kg
Shipping Width	0.300m
Shipping Height	0.900m
Shipping Length	0.400m
Shipping Cubic	0.108000000m3
